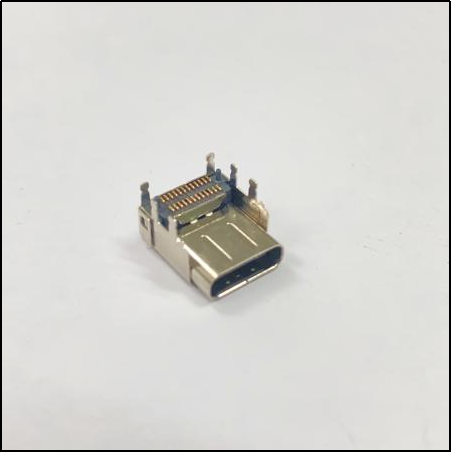

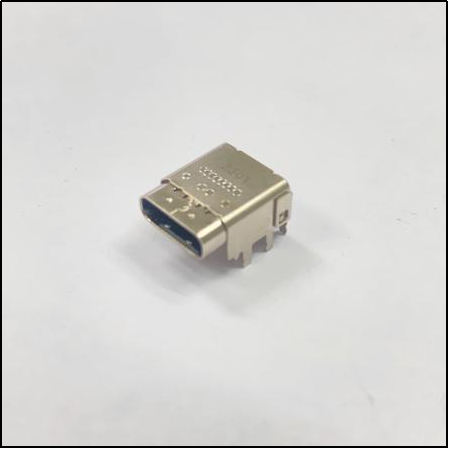

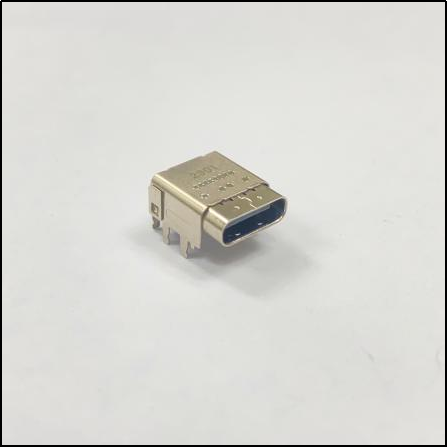

USB TYPE-C is a standard connector with a smaller volume than TYPE-A and TYPE-B. It can be applied to the both PC(master device) and external devices (slave devices, such as mobile phones). USB TYPE C has 4 pairs of TX/RX lines, 2 pairs of USB D+/D-, a pair of SBU, 2 CCs, and 4 VBUS and 4 ground line.
Operating temperature range: - 25 ℃~85 ℃ |
Rated load: 250V, 3A |
Contact resistance: ≤ 40 Milliohms Max |
Insulation resistance: 100 Megaohms Min |
Dielectric strength: 100V |
Inserting force: 5-20N |
Unmating force：8-20N |
Durability: 10000 cycles |
